How to deploy SmartFabric for VxRail Step 2

Step 1: Enable SmartFabric Services on the ToR Switch

Step 2: Deploy SmartFabric VxRail Cluster incl. ToR with VxRail Manager

      • Connect VxRail nodes to deploy SmartFabric enabled Switches
      • Power on first 4 VxRail nodes
      • Deploy SmartFabric VxRail thru the VxRail Manager GUI
      • Sit Back and Relax while VxRail Manager fully automates Bring Up of the entire Hyperconverged Stack (Compute, Storage AND the Network!)

Next Blog: Step 3: Deploy the OMNI plugin in VMware vSphere

Step 4: Virtualization engineer controls Day 2 Ops for the Full Stack

Beginning the VxRail GUI deployment

Connect the VxRail nodes to deploy SmartFabric enabled switches. Power on the nodes. Connect the laptop to the first port (port 1 only!) in the SFS switch. This is the “jump port” and will allow access to the default ip address [https://192.168.10.200] of the VxRail Manager VM. The VxRail Manager VM is already deployed in the appliances in factory.

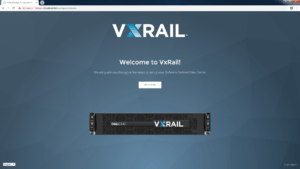

VxRail Manager GUI install
The Vxrail Manager GUI interface used to deploy a new cluster.

VxRail will deploy SmartFabric now

Since VxRail version 4.7.100 there is now the ability for the GUI driven VxRail Manager install to detect Dell EMC SmartFabric enabled switches. This automates configuration of the switches during the full stack deployment.

deploy SmartFabric
Here we can see that VxRail Manager has detected a Smart Fabric is available to configure thru VLAN 3939 the discovery VLAN for nodes and switches.

Setup the REST user to deploy SmartFabric

When the installer selects to deploy SmartFabric switches the next step will be to configure the Rest User account on the SFS enabled switch. If its a first run, a new password will be created. If you are setting up a second VxRail cluster into an existing SmartFabric, then the current password will be requested. The Rest User account will be documented in the Pre-Install Checklist by the installer.

Setting REST User password
The REST user account needs a password set.

New option to choose 2-Node cluster

The ability to deploy 2-node clusters is now an option with VxRail 4.7 versions. The GUI install gives you a choice for 2-Node here. For all other VxRail deployments the default option is selected.

New 2 node VxRail option during GUI install
You need at least 3 or 4 nodes to start the Smart Fabric node setup.

The initial cluster deployment needs to be 3 or 4 nodes. Normally the node with lowest serial number wins the VxRail Manager election process. This is signified by the small “house” icon. If you don’t see all the powered on nodes, try a reboot of the missing node and wait. It should be detected by ipv6 multicast using the loudmouth service on the discovery VLAN 3939.

VxRail node discovery
VxRail node discovery

Automate the build with JSON

Remember we use the Pre-Install checklist is used to capture all the required information to make a VxRail deployment in a customer Datacenter go perfectly. It can also be used to generate a JSON file to help eliminate human error during the GUI setup.

using JSON file
Use the JSON file – its way quicker!

Here we have used the JSON file to populate all the fields in the GUI install of VxRail. You only need to verify that everything is correct and provide the passwords.

New external MGMT VLAN option

There is a new option during the VxRail 4.7 version of the install that asks for a Management VLAN ID. The default is 0 to allow for Native VLAN to be used, or you can specify a different public management VLAN here. It should be different to the internal management VLAN used to separate the cluster build. The Internal Management VLAN was the -m option set in Step 1. This is very easy with SmartFabric now, as the VxRail Manager will make the necessary port configuration changes on the SFS enabled switches.

Now you can specify a external Management VLAN during GUI install rather than Native VLAN.

VxRail Manager automates the Switch configuration

There is a new task at the end of the GUI install and just before validation. SmartFabric services will now configure all the required VLANS that were specified, including Management, vMotion, vSAN and VM traffic.

SmartFabric switch automation
SmartFabric is smart! See it does the Network Admin tasks now!
switch fully configured.
Switch fully configured.

Validation eliminates human error

Trust but verify. Even with the SmartFabric automation, VxRail Manager still performs the important task of validating the install. Validation must pass before the actual deployment begins. This will capture anything amiss such as missing DNS entries, IP address conflicts , missing NTP. Basically anything that could prevent the build from completing successfully.

Validation
Trust but Verify = Validate!

Once validation has passed there is an opportunity to download a copy of the JSON file (useful if Step-By-Step was selected).

validation passed
Validation successful.

It is now time to kick-off the build. This is a fully automated process. There is zero value in manually setting up VSAN. By automating the process Dell EMC can be certain that every customer install of VxRail clusters are fully aligned to best practice. No snowflakes!

fully automated vSAN deployment
Go get a coffee – VxRail Manager will take care of the rest!
deploy SmartFabric
Hooray! The VxRail vSAN cluster is complete. Time to setup the OMNI plugin for day 2 operations of the SmartFabric.

VMware vExpert 2019. Thank You to my vCommunity

VMware vExpert 2019
VMware vExpert is an award for members of the vCommunity

I am delighted to get the news today (on my Birthday-eve) that I was accepted into the VMware vExpert program for the first time. A very Big Thanks to a bunch of people that helped and encouraged me along the way. Firstly my friend and colleague @vdiAllStar. There are too many friends to name where I work every day @DellEMCSolCtrs . The team at @DellEMCHol that are amazing like @Josephcorreia and @jensklasen and a load more on and off Twitter.

Thanks to my sponsor and all around gent @jasemccarty as well as @GarethEdwards who gave me some @vExpertPRO tips. Thanks also to the legends of #DellEMCElect @Dathbrun @victorforde @amitpanchal76 and @reddogmarc. Shout out to @VirtualisedReal and @BizTechMeg who gave me a shot. Also to @vmpete @lost_signal @aaronbuley @jeremymerril who inspired me without evening knowing it. I hope I can give back to the vCommunity as much as these people do.

Update! I have decided to pay it forward and written a blog on my experience trying to apply and failing to achieve VMware vExpert the first two times I applied! I hope you find some of my advice useful and don’t give up even if you are denied access at first.

Best UW portfolio VOB 2018

This weekend at the annual Irish Dive Show I landed a trophy for the Best portfolio for 2018 in the Vincent O’Brien Underwater Photography competition. The weekend was all about meeting up with old friends and hatching plans to meet again doing what we love – UW Photography!

My good friend and dive buddy Diarmuid from DOD Photography recorded a podcast from the show – im 2nd to last in the interview….check it out. I had some decent success this year with my underwater photography – 4 prizes in the Vincent OBrien and i made the shortlist in the Love Your Coast as well.

All images taken by Mike Orth
Camera is Sony Rx100 Mark2 Compact with Inon Z240 Strobes

Portfolio – Wide2 – Bathed in Green Light Image taken ascending from Crabs Back, Kilkee, Clare, September 1 2018 Diver is John Moloney LSAC ISO 200, f4.5, 1/400

Portfolio – Macro1 – Honeycomb Image taken in New Quay, Burren Clare. December 30 2018 ISO 125, f11, 1/200

Portfolio – Wide1 – Compass Rose Image taken in Blue Pool/Cameron Creek north of Kilkee, Clare. June 27 2018 Diver in background is Ciaran Enright LSAC ISO 160, F9, 1/400

Portfolio – Macro3 – Light and Dark Image taken on midweek dive in Blue Pool/Cameron Creek north of Kilkee, Clare. June 6 2018 ISO 125, f7.1, 1/200

Portfolio – Macro2 – On a Kelp Edge Image taken in New Quay, Burren Clare. August 19 2018 ISO 160, f11, 1/125

Portfolio – Wide3 – Hanging Ten on Pinnacle Wave Image taken at 40m on the Pinnacle, Kilkee, Clare. July 22 2018 Dive is Ken Maye Kilkenny SAC ISO 160, f4, 1/125

Experienced Macro – Eyes on the Road Image taken in New Quay, Burren Clare. August 19 2018 ISO 160, f4.9, 1/125

Open Split Shot – Dusty Photo Bomb Image taken at Doolin Pier before dive with Burren Sub Aqua Club October 28 2018 ISO 200, F4.5, 1/160


How to enable SmartFabric for VxRail Step 1

I decided to document the steps I used to enable SmartFabric Services on VxRail.  These are partly notes for myself and Customer Solution Centre engineers that will likely need to showcase this capability very soon.  The demand for this solution is very high and the customers I have met are impressed by what is now possible (wait until you see the roadmap!).

Note: This is not a guide for end user customers because a lot of what I write about is handled thru our automated deployment appliance; VxRail. A note of thanks to Allan Scott from New York CSC that helped with the first SFS deployment and documentation.

Step 1: Enable SmartFabric Services on the ToR Switch

  • Cabling the ToR Switches
  • Installing/Upgrading OS10 on Dell EMC Switch
  • Enable the VxRail Personality on OS10
  • Ready for Part2 – Deploying VxRail with Smart Fabric Services

Next Blog: Step 2: Deploy VxRail Cluster incl. ToR with VxRail Manager

Step 3: Deploy the SmartFabric OMNI plugin in VMware vSphere

Step 4: Virtualization engineer controls Day 2 Ops for the Full Stack


Getting Started :


How to enable SmartFabric Services on the ToRs

SmartFabric is supported on the 4100 series from Dell EMC. Current models are 10G – S4112 F/T, S4128 F/T or S4148 F/T  (25G coming soon). Sales can order these switches to be delivered from factory with OS10 and licenses already applied.

If you need the latest version of OS10 – get it here: force10networks.com , request login thru support page and download 10.4.1.x. Put OS10 .bin file and licence .xml file in a USB drive – insert USB drive into switch.

Cabling the TORs

First cable up ports 29 and 30 – 100GB cables for ISL (VLT).

Next cable up ports 25 and 26 – 100GB cables for Uplink.

Plug laptop into port 1 on switch.

Connect new VxRail appliances in any other port starting at port 2.

Installing or Upgrading OS10 on switch:

This is an optional step. The switches can be ordered and configured in factory, and so should arrive ready to begin at Step 2.

Connect the laptop to the serial port on one of the switches and start putty. Putty settings are 115200, 8, stop, none, none. I used a USB serial port so my COM port was COM3.

Powerup the serial connected switch – and break into ONIE mode by hitting ESC during bootup.

Choose “onie-discovery-stop” from the menu.

At prompt type: fdisk -l

USB Thumbdrive should be /dev/sdb1

mkdir /mnt/usb

mount -t vfat /dev/sdb1 /mnt/usb

Install OS10:

cd /mnt/usb

onie-nos-install /mnt/usb/XXXXXXXXXX.bin

Check IOS10 Version & Install License:

show version

show license status (skip next step if already installed)

license install usb://xxxxxxxx-NOSEnterprise-License.xml

Configure mgmt interface if required:

conf

int mgmt 1/1/1

no ip address dhcp

ip address 10.204.86.250/24

no shut

exit

management route 10.204.86.0/24 managementethernet

exit

Repeat these steps for the second ToR switch.

Optional step. Configure 40GB uplinks:

My showcase lab is using 40GB uplinks rather than 100GB so I needed to change the profile of the uplinks before applying the VxRail SFS personality. You can skip this step if you are using 100GB links.

OS10(config)# switch-port-profile 1/1 profile-2

Warning: Switch port profile will be applied only after a save and reload. All management port configurations will be retained but all other configurations will be wiped out after the reload.

OS10(config)# exit

OS10# write memory

OS10# reload

Enable the VxRail personality:

The SFS personality script is included in OS10. Once applied to each ToR switch, the switches will reboot with SmartFabric Mode enabled and you are now ready to perform a VxRail deployment from the VxRail Manager.

system bash

sudo sfs_enable_vxrail_personality.py -d 20 -a-m 2002

‘-d 20’ is a unique Domain ID that you assign to each cluster

‘-m 2002’ is a non-routed vlan used to do the initial build, local to the ToR switches only (Internal management network)

‘-a’ indicates that the port-channel on the upstream switches is configured with LACP

VxRail personality profile script options :



Domain -d <id> Required numeric value unique to data center (1 to 254) applied to ToR switch configuration settings Default: 1
Uplink -u <port,port> Override default 100Gb uplink ports Default: ports 25& 26
ISL -I <port,port> Override default 100Gb ISL ports Default: ports 29 & 30
Uplink tagging -t Whether external management VLAN is tagged or untagged when passed through uplinks. Default: untagged
Uplink LACP -a Whether LACP is active on uplink port channel (dynamic) or not (static). Default: static
Uplink breakout -b <2X50GE, 4X25GE, 4X10GE> Breakout 100Gb uplinks. Used to support connectivity to upstream switches without 100Gb ports
Management VLAN -m <VLAN> VxRail Cluster Build Network VLAN.
Default: 1

Validate Personality:

system bash

sudo sfs_validate_vxrail_personality.py

Links to useful guides that helped us document this build:

VxRail Fabric Automation SmartFabric Services User Guide

Dell EMC OpenManage Network Integration for VMware vCenter

How to Install Dell Networking FTOS on Dell Open Networking (ON) Switches


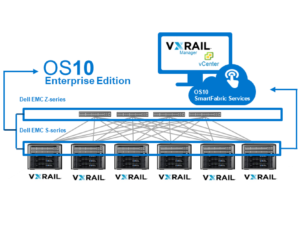

SmartFabrics is Smart for VxRail HCI

My guide to enable SmartFabric on Dell EMC switches is here.

Catch out my interview with Barry Coombs from ComputerWorld UK on SmartFabric… does everyone hate their own voice or just me?

Is networking in HCI complex?
